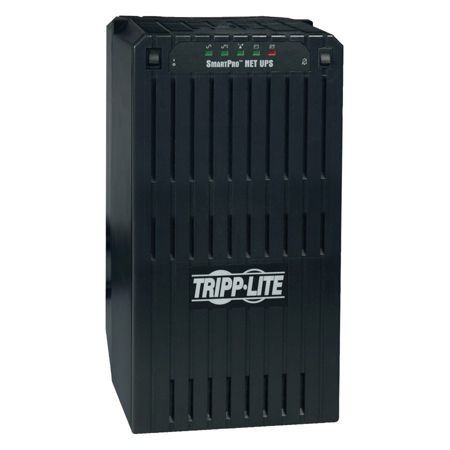

Tripp Lite SmartPro 2200VA UPS Item # 724649
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
724649
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Tripp Lite's SMART2200NET intelligent, line interactive tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 27 minutes half load runtime and 11 minutes fully loaded. Runtime is expandable with optional BP24V33 external battery packs. 2200VA / 1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 6 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Supports SNMP with optional external SNMPWEBSOLO adapter. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level, plus voltage regulation status. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Two year warranty with $250,000 connected equipment insurance.
Product Details
| Item # | 724649 |
| OfficeMax # | 20448632 |
| Manufacturer # | 483569 |
| software included | PowerAlert Software |
| Load Capacity (Watt) | 1700 W |
| Backup/Run Time (Full Load) | 11 Minute |
| Maximum Battery Recharge Time | 4 Hour |
| Switching Time | 4 ms |
| Status Indicators | Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information |
| Temperature | 122°F (50°C) |
| Battery Life | 6 Year |
| height | 16.5 in |
| Additional Information | SMART2200NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression; 2200VA / 1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices; Large internal batteries offer runtimes of 27 minutes at half load (1100VA / 850 watts) and 11 minutes at full load (2200VA / 1700 watts) |
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Output Voltage | 120 V AC |
| battery type | Sealed Lead Acid |
| assembly required | No |
| width | 9 in |
| Product Line | SmartPro |
| package contents | SMART2200NET UPS System; PowerAlert Software CD; 3 x 6-ft. network cables; Warranty Information; Instruction Manual |
| depth | 12.2 in |
| Product Name | SmartPro 2200VA UPS |
| Network Management | SNMP Manageable |
| manufacturer | Tripp Lite |
| postconsumer recycled content | 0% |
| Plug/Connector Type | NEMA 5-15P |
| Waveform Type | Pulse-width Modulated Sine Wave |
| weight | 80 lb |
| Eco-conscious | No |
| brand name | Tripp Lite |
| Input Connectors | 1 x power NEMA 5-15 |
| Input Voltage | 110 V AC |
| Surge Energy Rating | 480 J |
| length | 8 ft. |
| Backup/Run Time (Half Load) | 27 Minute |
| Load Capacity (VA) | 2200 VA |
| total recycled content | 0% |
| Total Number of Expansion Slots | 3 |
| Alarm | On Battery |
| form factor | Tower |
| Receptacles | 6 x NEMA 5-15R |
| color | light gray |
| warranty length | 2-year limited |
| Show More ▾ |
Customer Reviews
Rated 5 out of 5�by 4
reviewers.
Rated 5 out of 5�by jkwagler this product helped solve a tough problem
We had a problem with our CNC plasma cutter -- frequent erratic motions, freeze-up of the computer screen, etc. Our supplier said it was a power issue -- due to all the welding going on in the same building. We purchased your UPS, found it was easy to install, and it cleared up the problems we were having. I especially like the test feature, that allows me to quickly and easily check that the unit does in fact still function properly, and can handle the load we put on it. All in all, it was a good unit that did the job we needed for a reasonable price.
October 28, 2014
Rated 5 out of 5�by brcromer This product does what it says it will do.
I bought this UPS for my small office. I needed something beefier than a standard UPS for my workstation. I'm particularly impressed how it handles brown outs when a vacuum cleaner is plugged into and run from another outlet in the room.
September 22, 2013
Rated 5 out of 5�by androvi Vital equipment to feel protected.
This equipment is necessary to maintain test equipment protected and information capture.
June 28, 2013
Rated 5 out of 5�by Dow Excellent longevity and durability!
We've purchased 5 or 6 of these over the past 10 years for molecular modelling workstation support or printer support. All UPSes are still running doing a great job. The batteries have been replaced in several of the oldest. I highly recommend this model for a price versus capacity sweet spot. I personally purchased one for my home to run a CPAP machine all night when the power goes out.
November 1, 2012
1-4 of 4
